Load a Configuration from the Configuration Library to a Paired Recorder

About this task

Loading a configuration file sets all of the paired recorder's settings to match how the settings were set in the configuration file. This is useful if you want multiple recorders to use identical settings, or if you want to maintain consistent settings from one deployment to the next. A single configuration file can be used repeatedly, on multiple Song Meter Micro or Song Meter Micro 2 recorders.

The following procedure loads a saved configuration file from the Configuration Library to a paired recorder using the Song Meter Configurator app.

Procedure

  1. Make sure the configuration file you want to load is saved in the Configuration Library.

    See Configuration Library Screen for methods on creating or importing a configuration file into the app.

  2. Pair the Recorder with the Song Meter Configurator App.
  3. Tap the Configure icon to open the recorder's Configuration Editor screen.

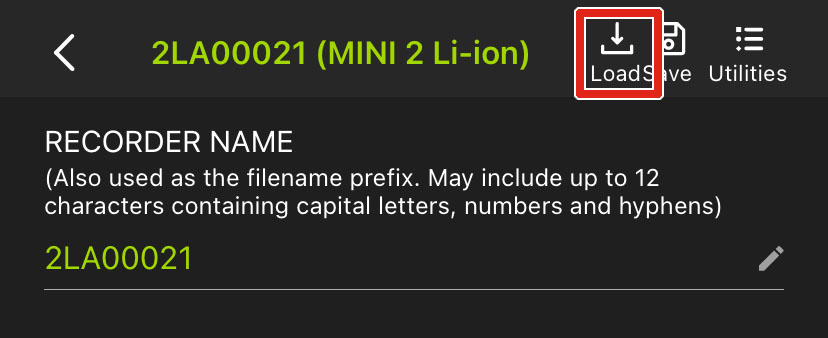

  4. Tap the Load icon at the top of the Configuration Editor screen.
    The Load icon is to the left of the Save and Utilities icons.

    A Load Configuration window will appear.

  5. Select your configuration file from the Load Configuration window.

    A dialog window will ask if you are sure you want to load the selected configuration.

  6. Tap OK.

Results

A Success window will display a message confirming the configuration has been loaded.

All of the Song Meter Micro 2's STATUS LEDs will flash green to indicate the configuration has been loaded.
