Save a Configuration File from a Paired Recorder to the Configuration Library

About this task

Saving a configuration file copies all of the paired recorder's settings into a configuration file, which is saved to the Song Meter Configurator app's Configuration Library. This configuration file can be loaded into the same recorder or another of the same model to restore those saved settings. This is useful for duplicating settings across multiple recorders, and it is also a way to back up your settings before you experiment with changes to how a recorder is configured.

The following procedure uses the Song Meter Configurator app to save a configuration file from a paired recorder to the app's Configuration Library.

Procedure

  1. Pair the Recorder with the Song Meter Configurator App.
  2. Tap the Configure icon to open the recorder's Configuration Editor screen.

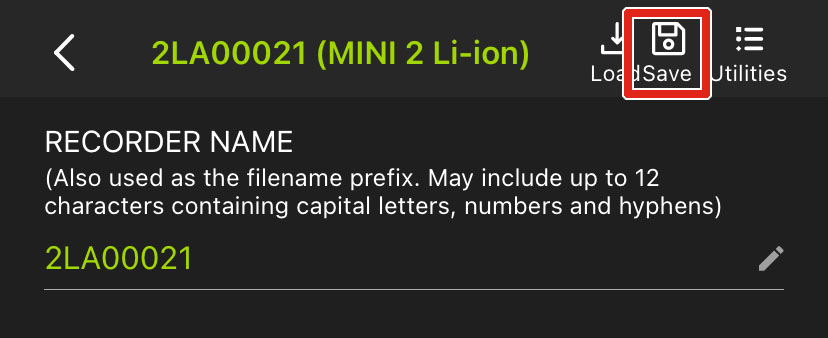

  3. Tap the Save icon at the top of the Configuration Editor screen.
    The Save icon is located to the right of the Load icon and to the left of the Utilities icon.

    A Configuration Name window appears. An editable text box is prepopulated with the paired recorder's Recorder Name.

  4. Edit the text field to set a name for your configuration.
  5. Tap OK.

    Your configuration will be saved.

  6. To view your configuration file,
    1. Exit the Configuration Editor by tapping the < button at the top left of the screen.
    2. Tap the Configuration Library button at the bottom of the Recorders screen.

    Your configuration will be listed in the Configuration Library screen.

  7. To make further changes to the saved configuration, see Edit a Saved Configuration File.
