SMART MIC-1 Microphone Specifications

Physical Specifications


Length	8.9 in. (226 mm)
Diameter	3.0 in. (76 mm)
Weight	1.4 lb. (0.64 kg)
Operating Temperature	-4 °F to 185 °F (-20°C to 85°C)
Enclosure	IP67-rated weatherproof, anodized aluminum, salt fog tested

For overall dimensions, see table above. Other details depicted: The Ethernet port protrudes from the base of the SMART MIC-1 by 0.48 inches (12.1 mm). The Ethernet port is secured by a hex nut that is 1 inch across from flat to flat. — Figure 1. SMART MIC-1 Dimensional Drawings. Bracketed measurements in millimeters. Unbracketed measurements in inches.

Audio Specifications

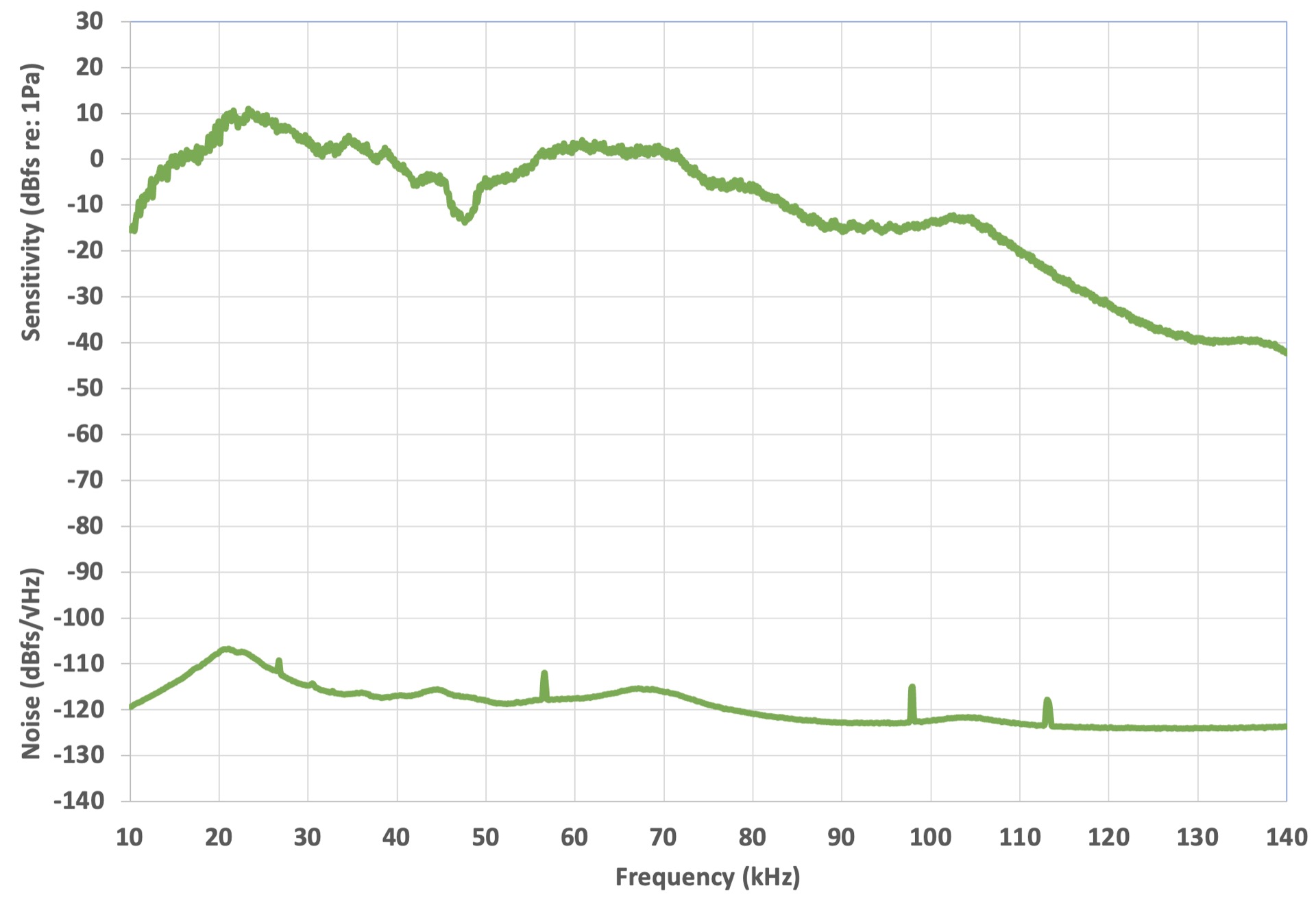

The sensitivity falls within -15 and +11 dBFS relative to 1 Pa between 10 kHz and 85 kHz. From 85 kHz to 140 kHz, sensitivity gradually falls to -40 dBFS. The noise level is generally flat at around -120 dBFS per square root hertz. — Figure 2. Sensitivity and Noise of the SMART System with SMART MIC-1

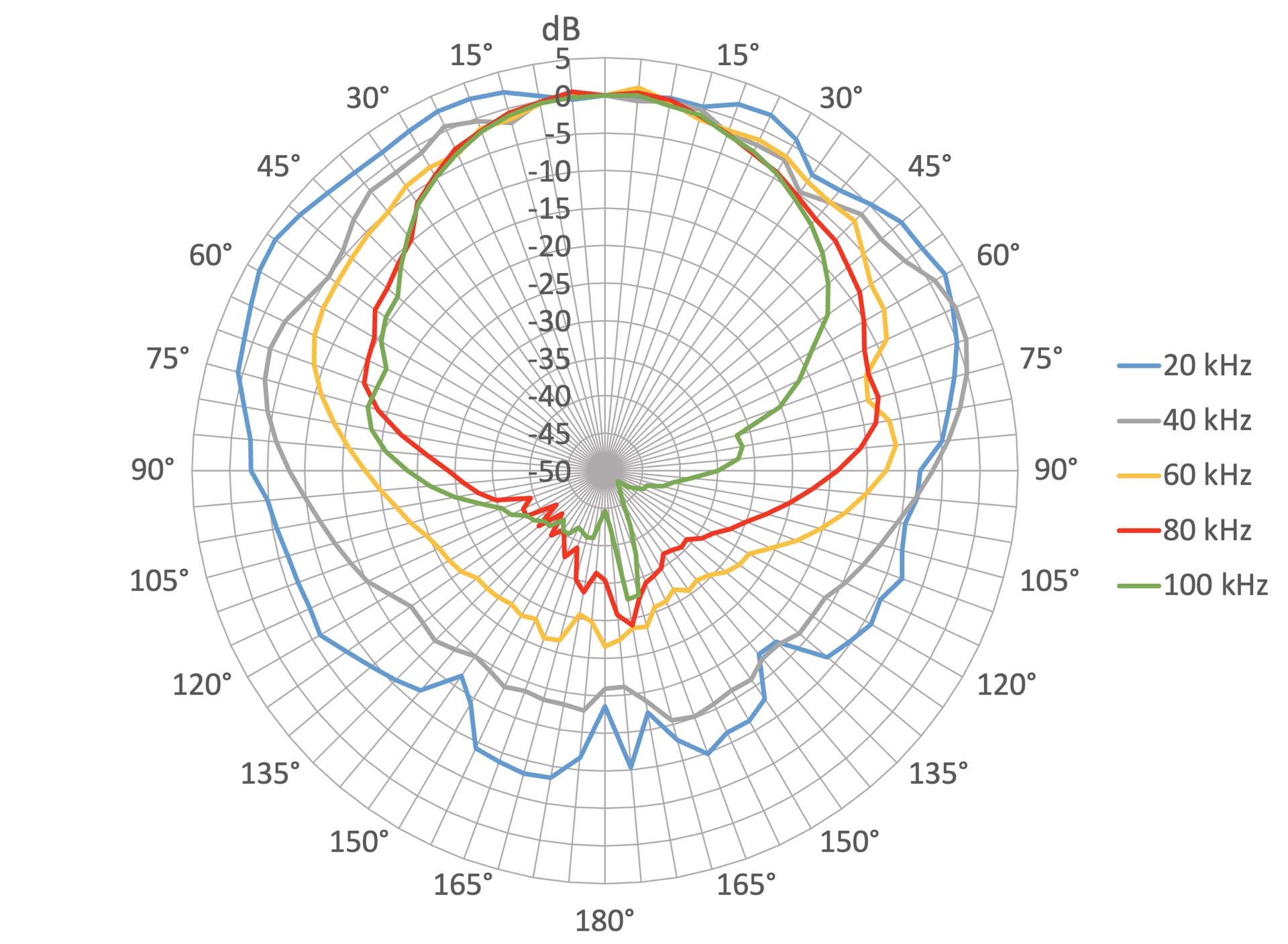

Response becomes more directional at higher frequencies. At 20kHz, the 180° off-axis sensitivity is about 10 dB less than on-axis. At 100 kHz, the disparity is about 45 dB. — Figure 3. Directionality of the SMART System with SMART MIC-1
