External Features

Durable, Weatherproof Enclosure

The Song Meter Micro 2 recorder is designed for long-term, outdoor deployment. Made from durable polycarbonate plastic, it is UV-resistant and weatherproof. The enclosure meets IP67 standards, meaning it can withstand temporary submersion in water up to a depth of one meter without water intrusion.

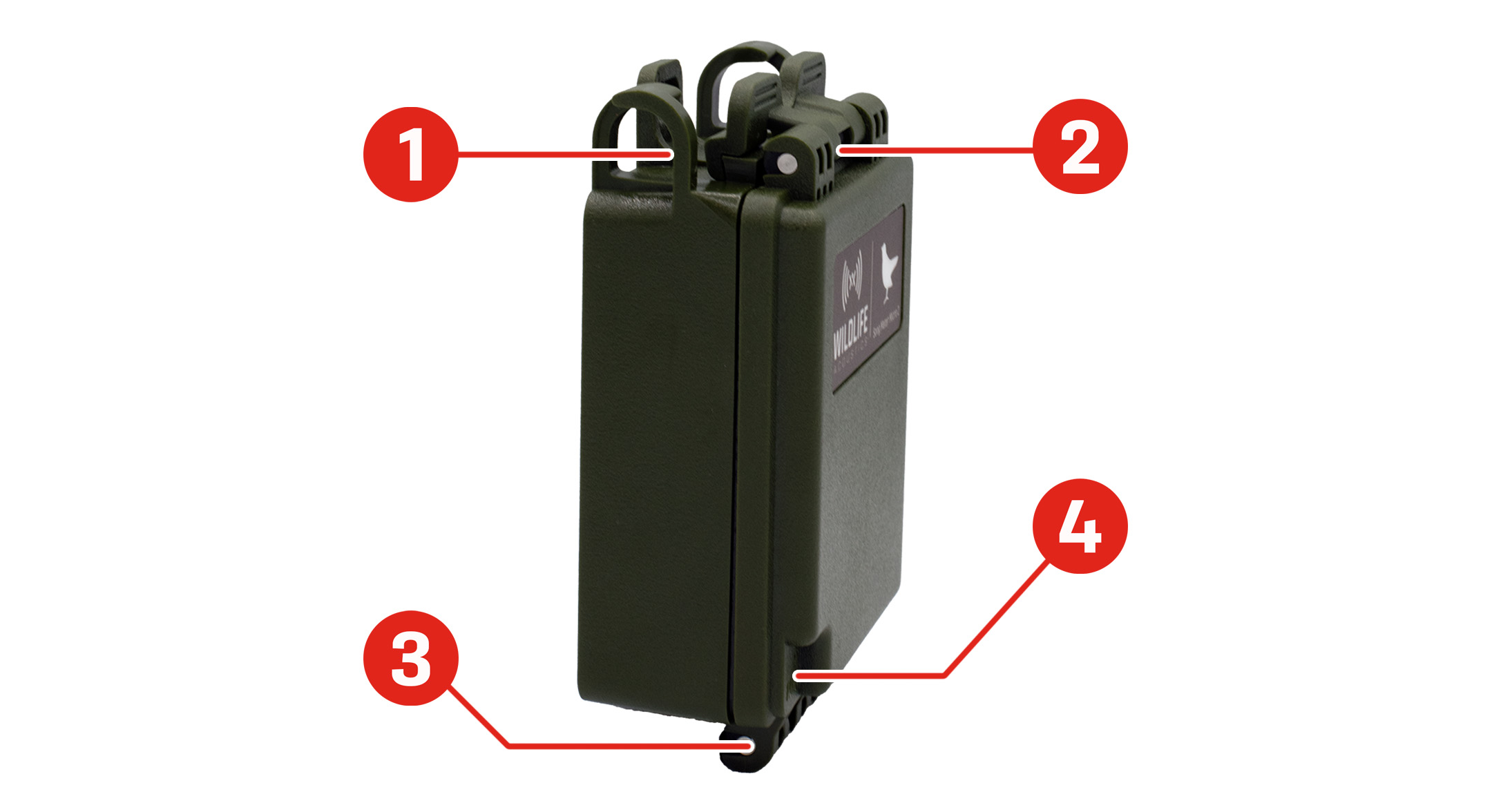

Figure 1. Front-Left View
Song Meter Micro 2 shown from the front-left with the lid closed. Locations of features are highlighted. The Enclosure Latch is located on the top edge of the recorder. One of two Mounting Loops is located to the left of the Enclosure Latch. The Microphone Vent is at the lower-left corner of the front cover, above an embossed MIC label. The Enclosure Hinge is located at the lower edge of the recorder.

  1. One of two Mounting Loops, which can accommodate bungee cords, rope, or cable locks up to a diameter of 0.420 in. (10.67 mm). See Versatile Mounting Options.

  2. The Enclosure Latch snaps into place to keep the enclosure sealed.

  3. The Enclosure Hinge keeps the lid and body of the recorder permanently attached.

  4. One Acoustic Microphone is installed behind a vent on the front cover. It is protected by an internal, weatherproof membrane.

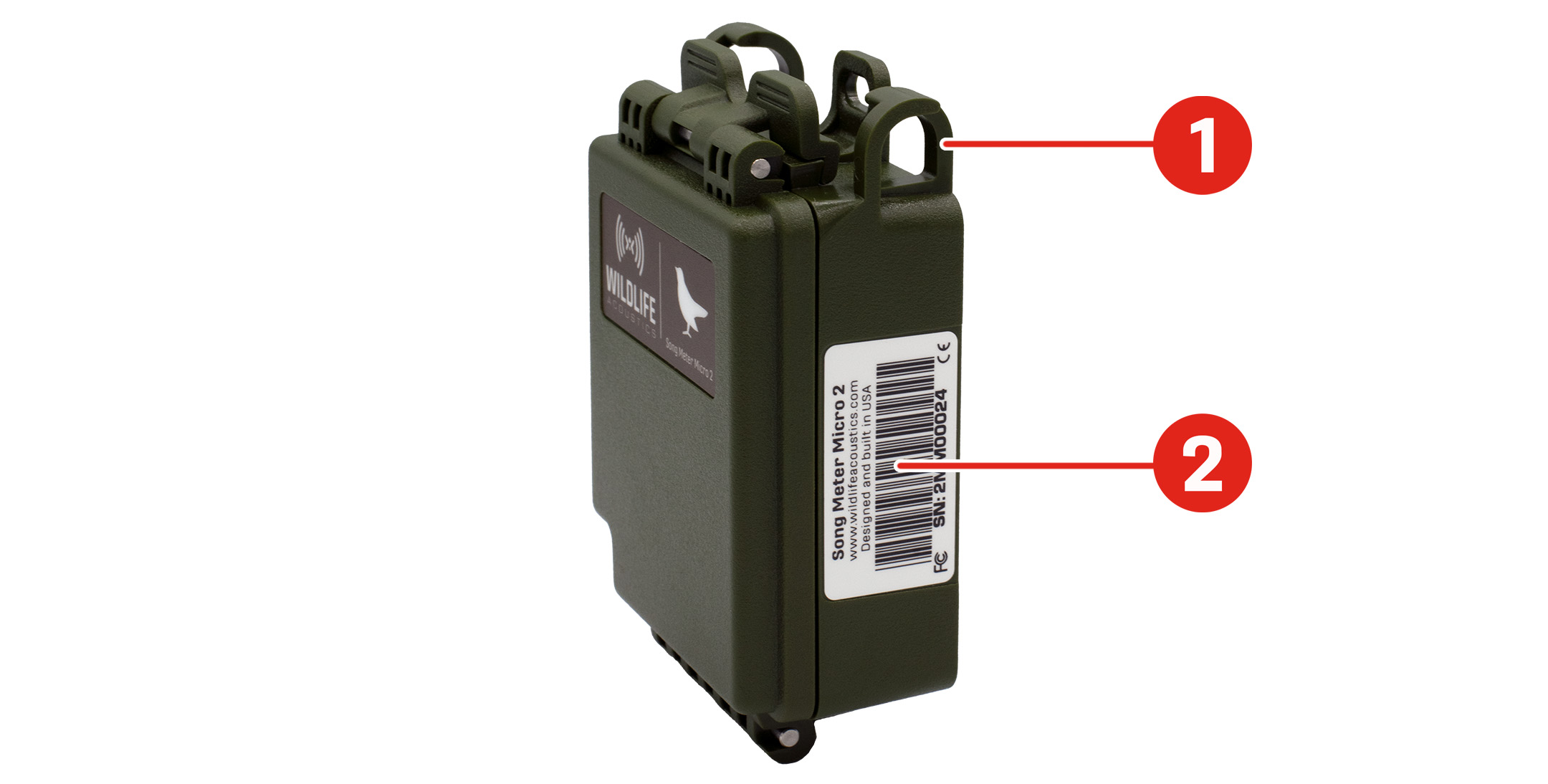

Figure 2. Front-Right View
Song Meter Micro 2 shown from the front-right with the lid closed. Locations of features are highlighted. One of two Mounting Loops is located at the top-right corner of the enclosure. A barcode label is located on the right edge of the enclosure.

  1. One of two Mounting Loops, which can accommodate bungee cords, rope, or cable locks up to a diameter of 0.420 in. (10.67 mm). See Versatile Mounting Options.

  2. The Barcode Label lists the recorder's Model Name and Serial Number.

    This information is also visible in the Song Meter Configurator app on the Status Screen.

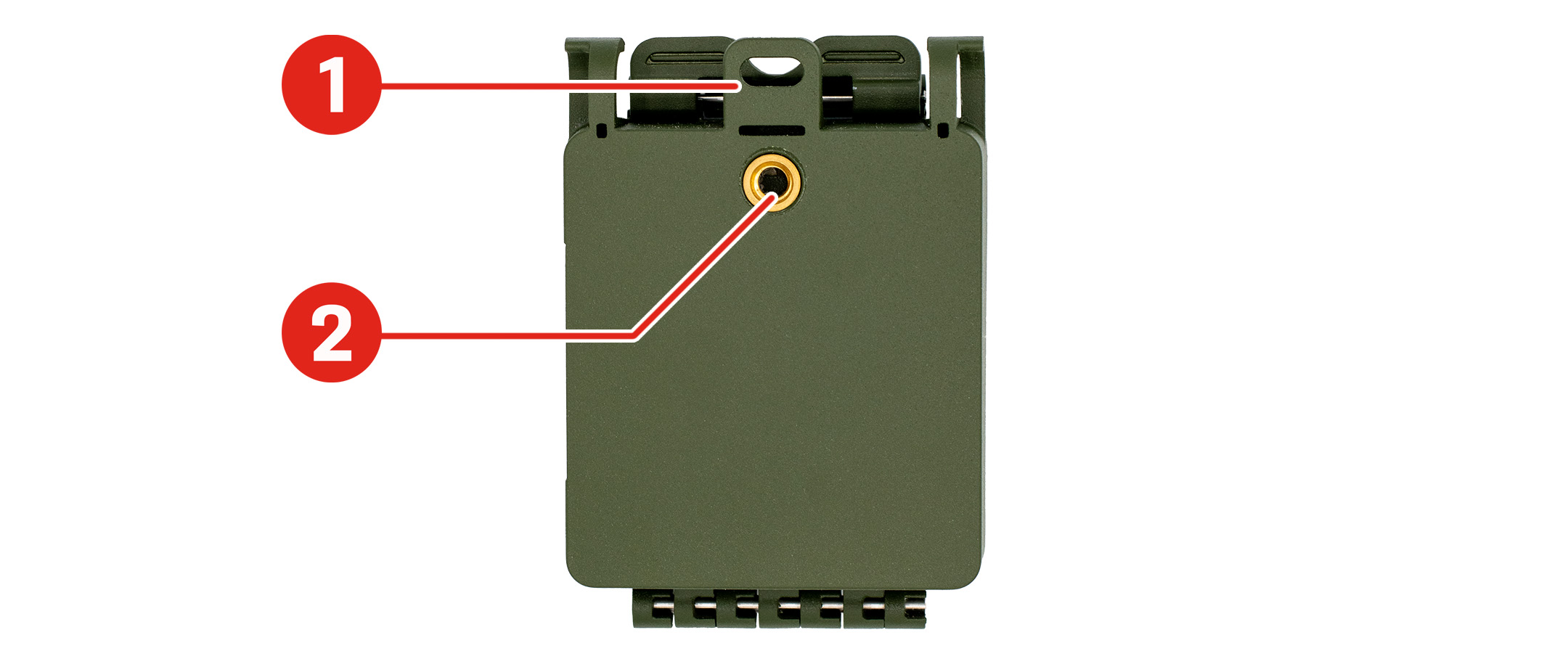

Figure 3. Rear View
Song Meter Micro 2 shown from the back with the lid closed. The Mounting Tab is at the center of the upper edge of the recorder. A recessed Tripod Mount is located just below the Mounting Tab.

  1. The Mounting Tab can accommodate bolts or screws with a maximum thread diameter of 3/16 in. (4.6 mm). It can also serve as attachment points for bungee cords or zip ties.

  2. A Tripod Mount fits a 1/4ʺ-20 bolt, the same specification used by many cameras, including trail cameras.

Versatile Mounting Options

The enclosure of the Song Meter Micro 2 is equipped with attachment points that support a wide range of mounting options:

  • The Mounting Tab at the top of the enclosure's back can accommodate bolts or screws up to 3/16 in. (4.6 mm) in diameter. It can also be used for attaching bungee cord hooks or zip ties, for example.

  • Mounting Loops at the upper-left and upper-right of the enclosure are suitable for cable locks, rope, zip ties, or bungee cords, among other possibilities. The internal diameter of these loops is 0.420 in. (10.67 mm).

  • The brass Tripod Mount on the back of the enclosure fits a 1/4ʺ-20 bolt, enabling compatibility with many mounting accessories designed for trail cameras. We recommend mounting accessories with brass bolts, as different metals can react with the brass of the mounting insert and corrode when wet.

    Note:

    Be aware that not all camera mounts use the same bolt specification. For example, mounts designed for heavy video cameras may use a 3/8ʺ-16 bolt. Check the manufacturer's specifications when shopping for a compatible mount.

Important:

With any mounting method, be careful not to apply excess force to the enclosure of the Song Meter Micro 2. If too much force is applied, the enclosure can flex, opening gaps between the lid and body and compromising the recorder's weatherproofing.

Take extra care when attaching the recorder to young trees. The tree's growth over the course of a deployment could increase the strain on the enclosure.

Lock Compatibility

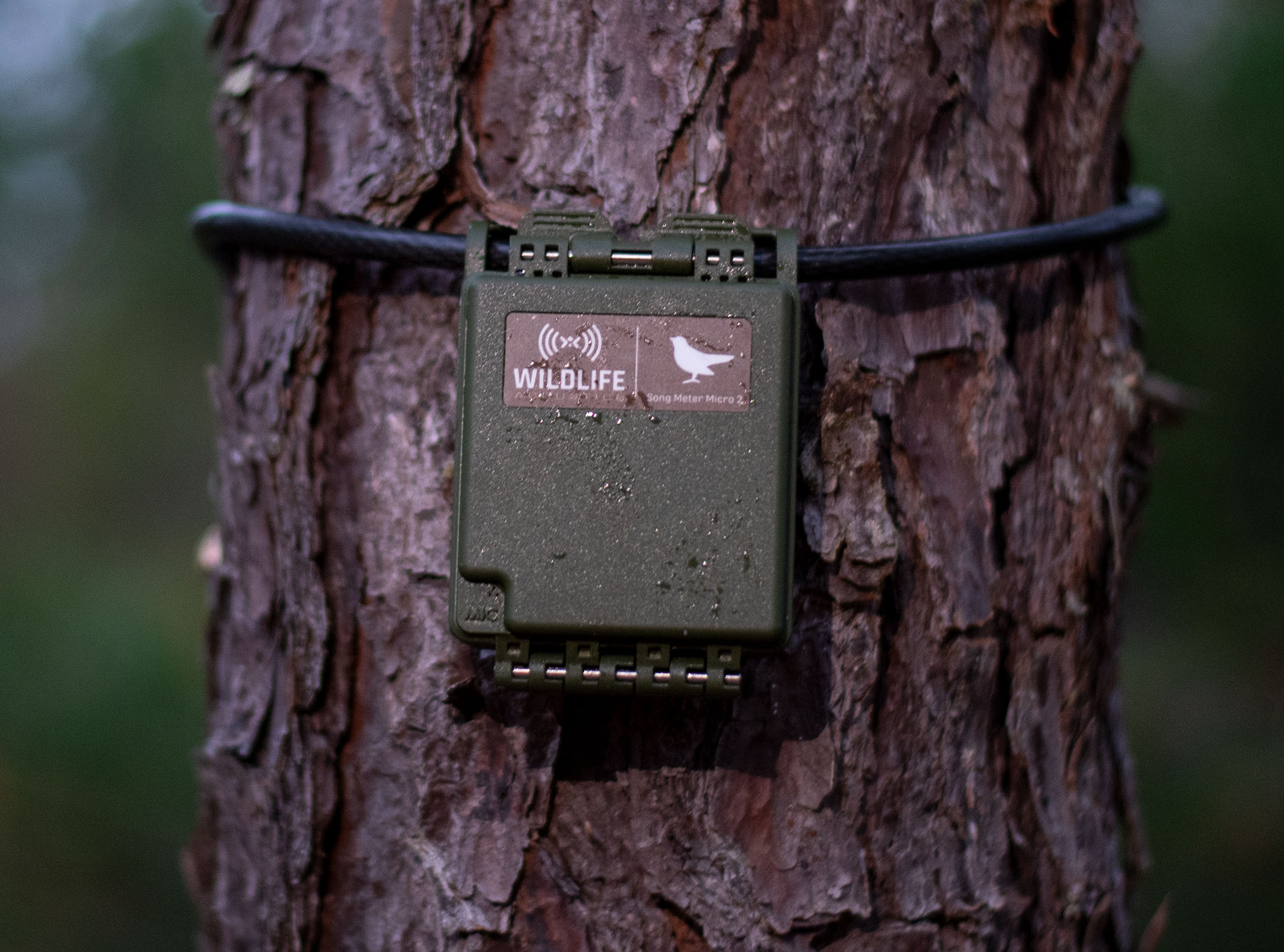

A cable lock can be threaded through the two Mounting Loops along the top of the Song Meter Micro 2 to keep it attached to a tree or structure.

The diameter of a cable lock must be narrower than 0.420 in. (10.67 mm) to fit through the two Mounting Loops.
